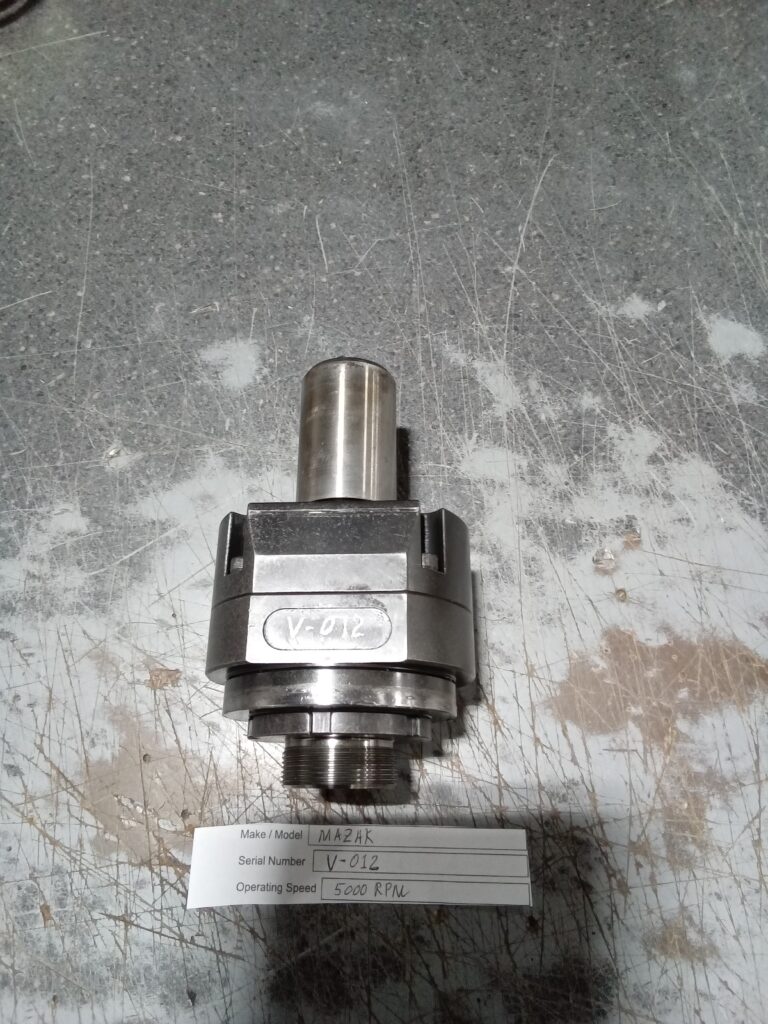

Mazak live tool, 5000rpm

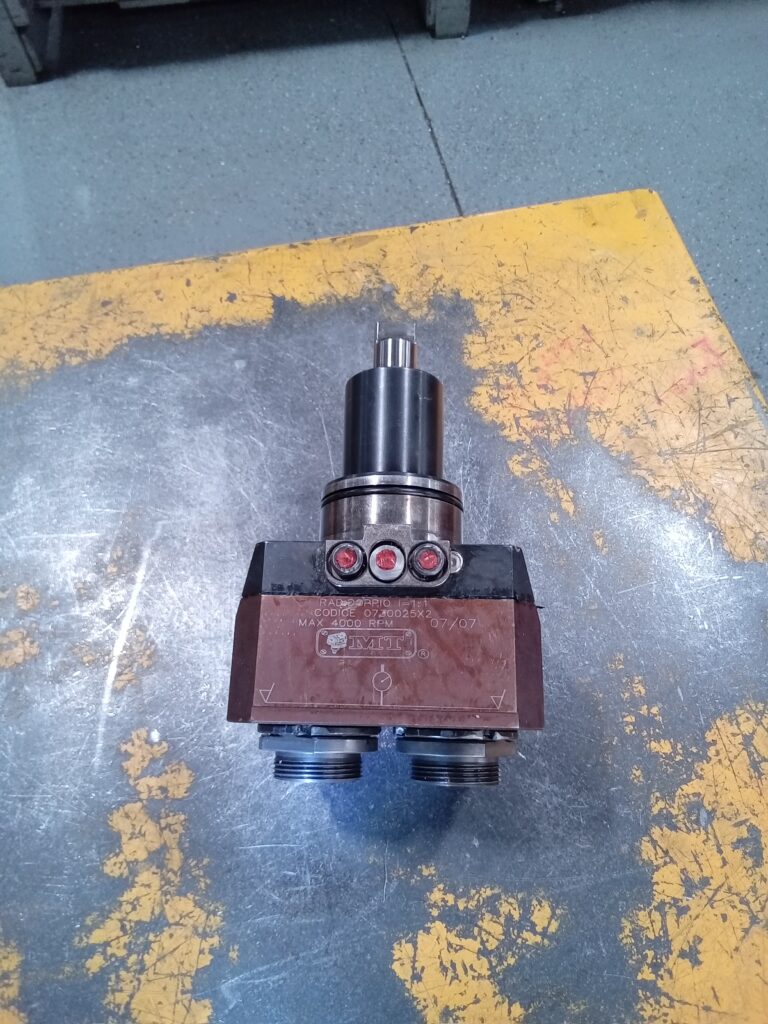

We offer Mazak live tool repair services for all Mazak precision tools.  Our repairs will typically cost 1/2, or less than 1/2 the price of a new live tool.  Plus, we can upgrade the original non-sealed bearing design, to a sealed / shielded bearing design at all bearing locations.  We keep bearings in stock for these live tools to allow us to keep pace with our repair volume.  Lead-time can be as short as 2-3 days.

  • Most live tools exceeding 0.001″ runout are due, or almost due, for a repair.  0.0008″ or less is the target runout for a live tool.
  • Live tools like to rest as long as they cycle at full speed or maximum load.  5 minutes is a typical maximum run time followed by a 5 minute rest.
  • 150 to 160F temperatures are common when running at full load.
  1. Disassembled and cleaned.
  2. Inspected dimensionally and visually.
  3. Quoted for repair.
  4. The spindles are assembled with new precision grade sealed / shielded bearings.
  5. If necessary, the spindle is ground to true the taper, and / or the bearing journals are plated and re-ground to proper bearing tolerance and total indicated runout.
  6. As required, the lower, middle and upper bearing housings may be bored, bushed, and reground to proper concentricity and dimensional tolerance.
  7. The spindles are re-assembled.
  8. The spindles are installed in the housing.
  9. The unit is run tested for 5-10 hours with testing of vibration, temperature, and noise levels

Why should you have your multi-spindle boring head, high speed right angle head, or other aggregate head, repaired by Ekstrom-Carlson?

  1. Lead-time: 1-2 Week average for multi-spindle heads, including tear down, inspection, quotation, and repair.  3-5 days for right angle heads and live tooling repairs.
  2. Price: Much lower price than the OEM, or the OEM distributor.
  3. USA repair: We repair the unit in Rockford, Illinois.  It is not shipped overseas, as is often the case for various machines.
  4. Parts repair: Where possible, we will save money by repairing motor spindles and gear spindle shafts.  Some manufacturer’s representatives will always quote a brand new unit if the unit drive shaft is damaged, or if the bearings require replacement.  75% of the time, we can save the original unit at less than 50% the cost of new.
  5. Sealed bearings when available and possible conversion to ceramic bearings.
  6. Free inspections.
  1. The condition of the machine before the rebuild along with accurately diagnosing any and all problems.
  2. Installing proper replacement parts including spindle grade bearings and parts with OEM tolerances that are known only to OEM’s such as Ekstrom-Carlson.
  3. Precision tolerance machinery and tooling including grinding, plating and balancing equipment.
  4. Experience and quality workmanship of the repair technician.

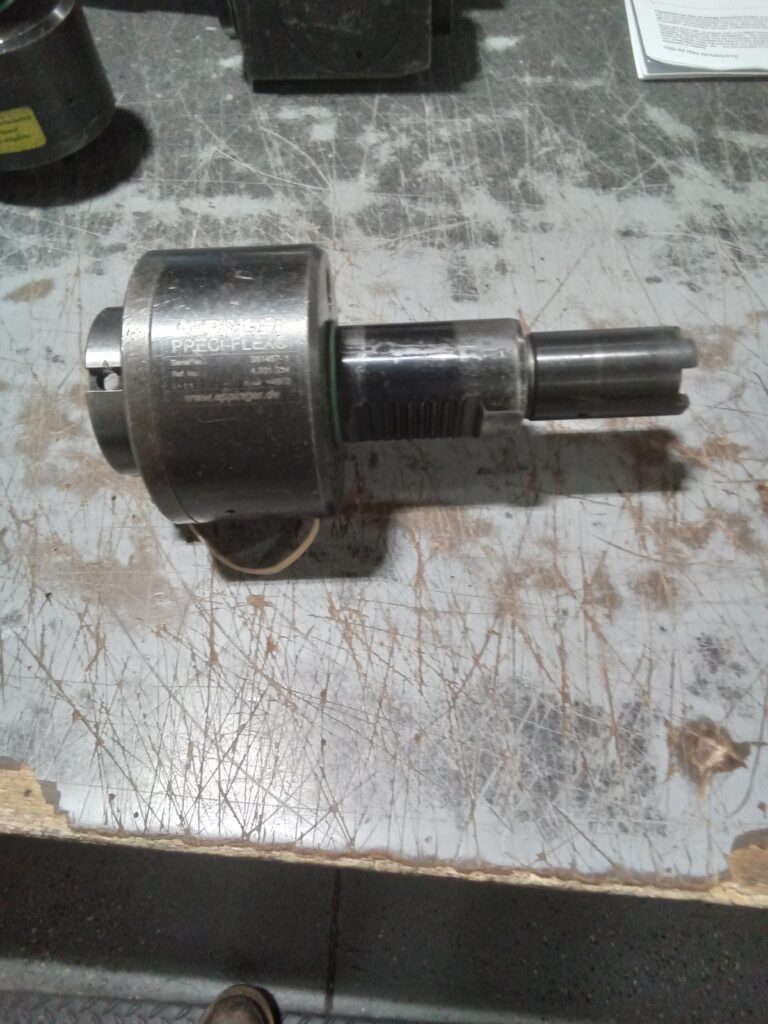

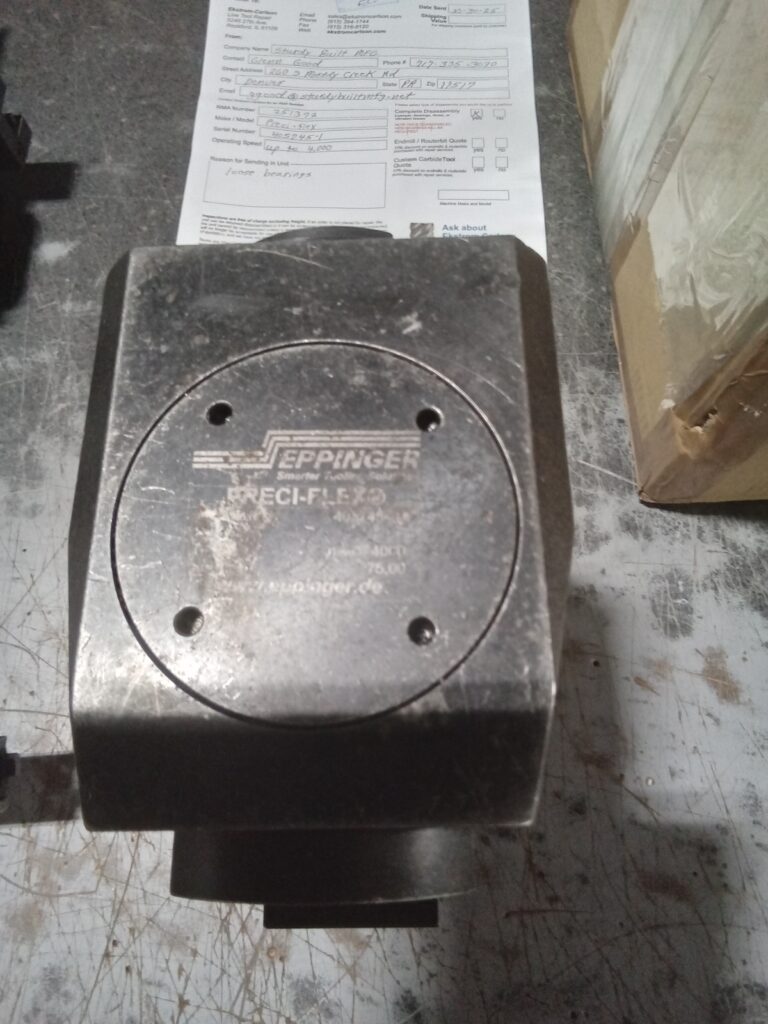

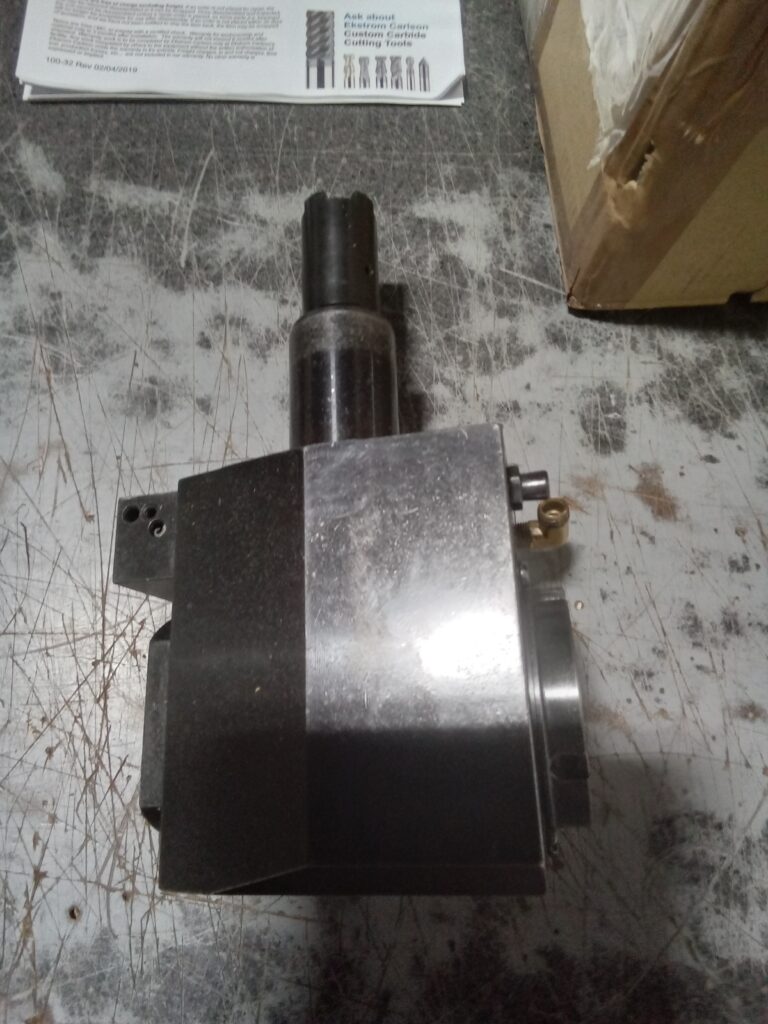

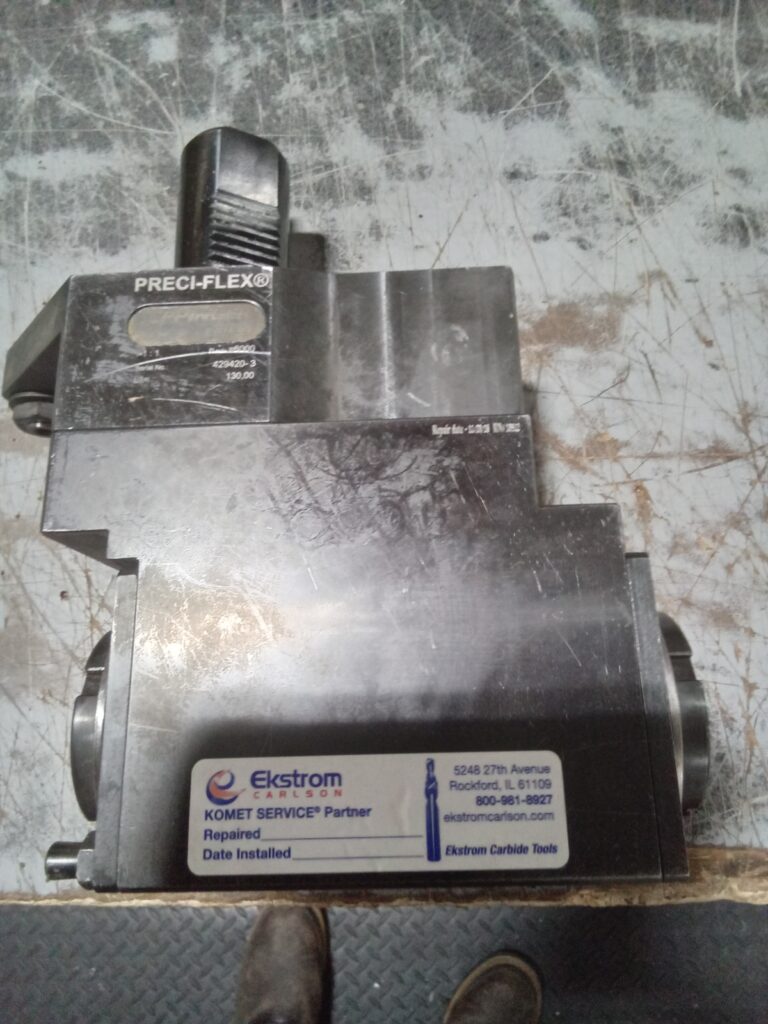

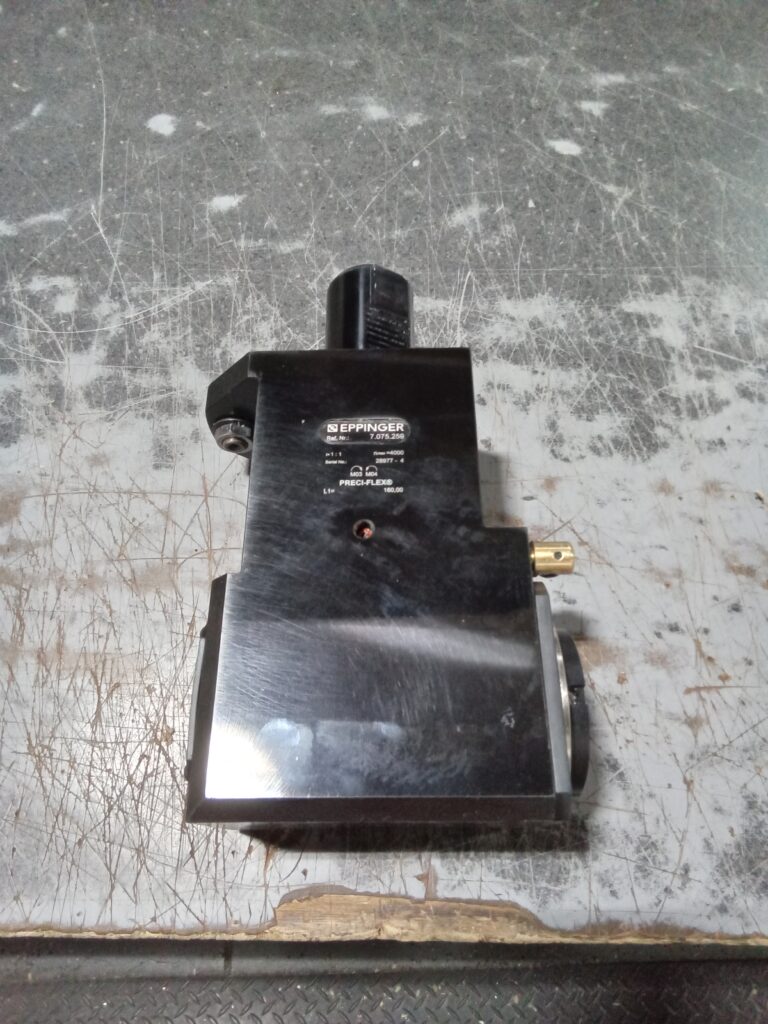

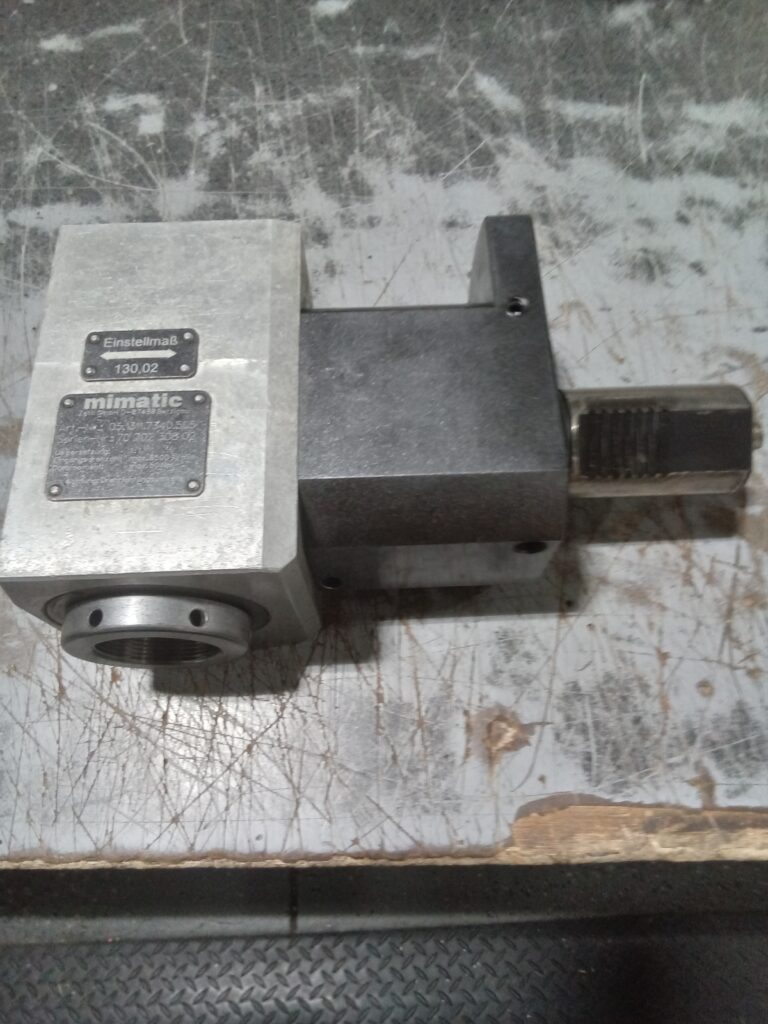

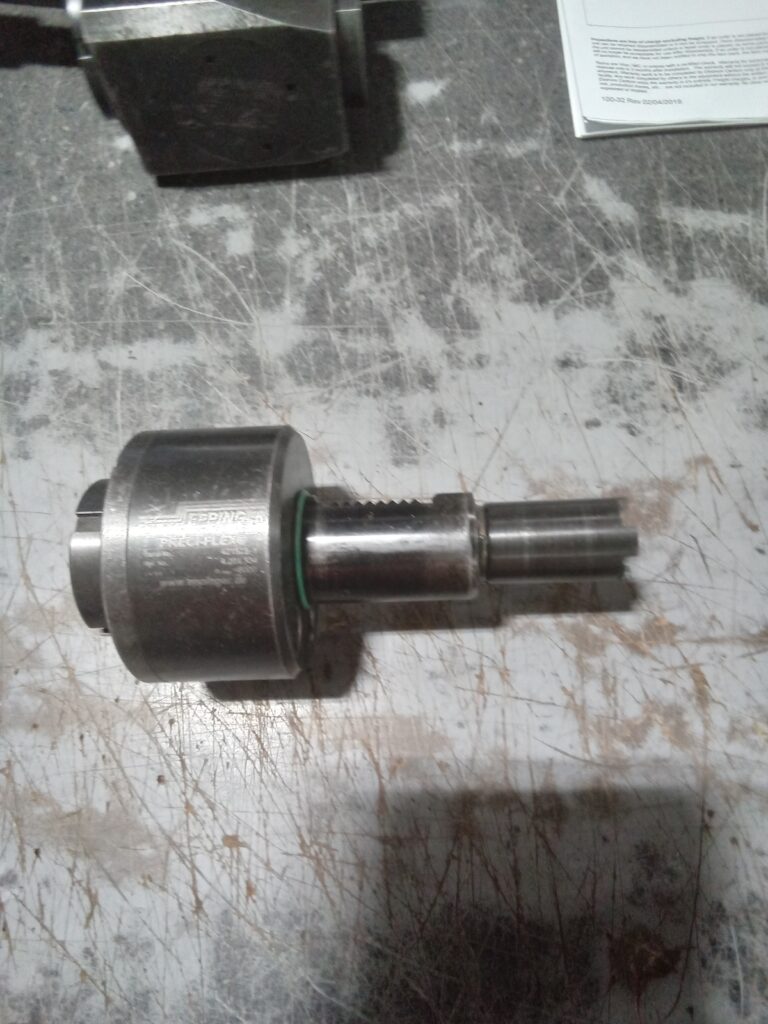

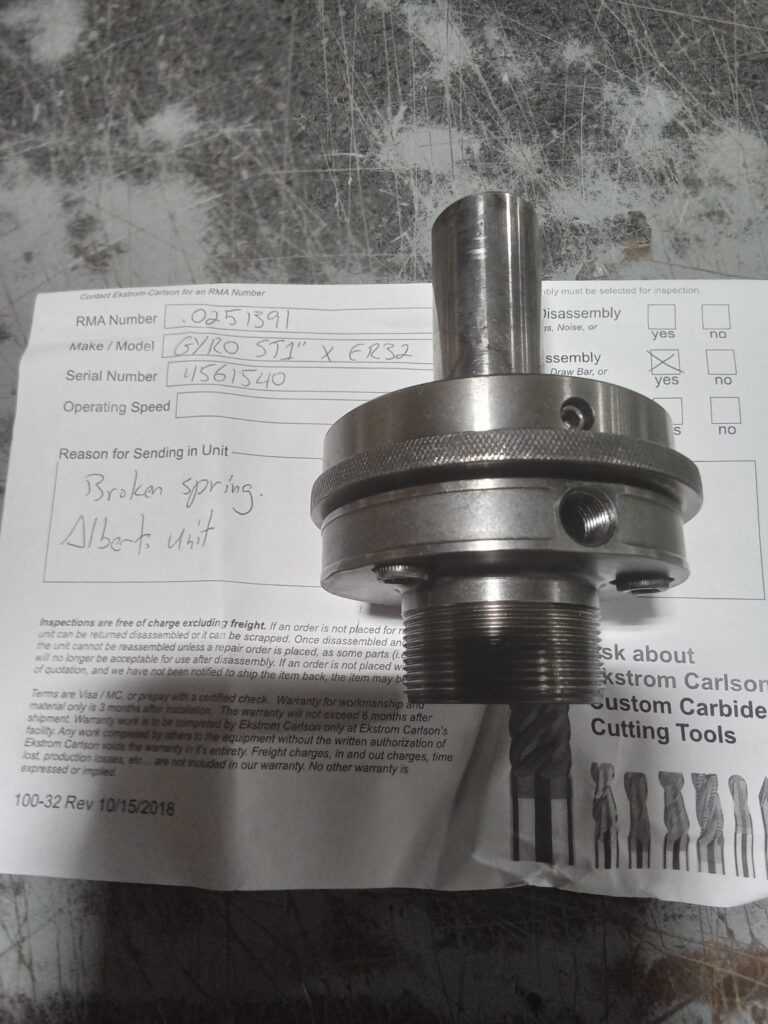

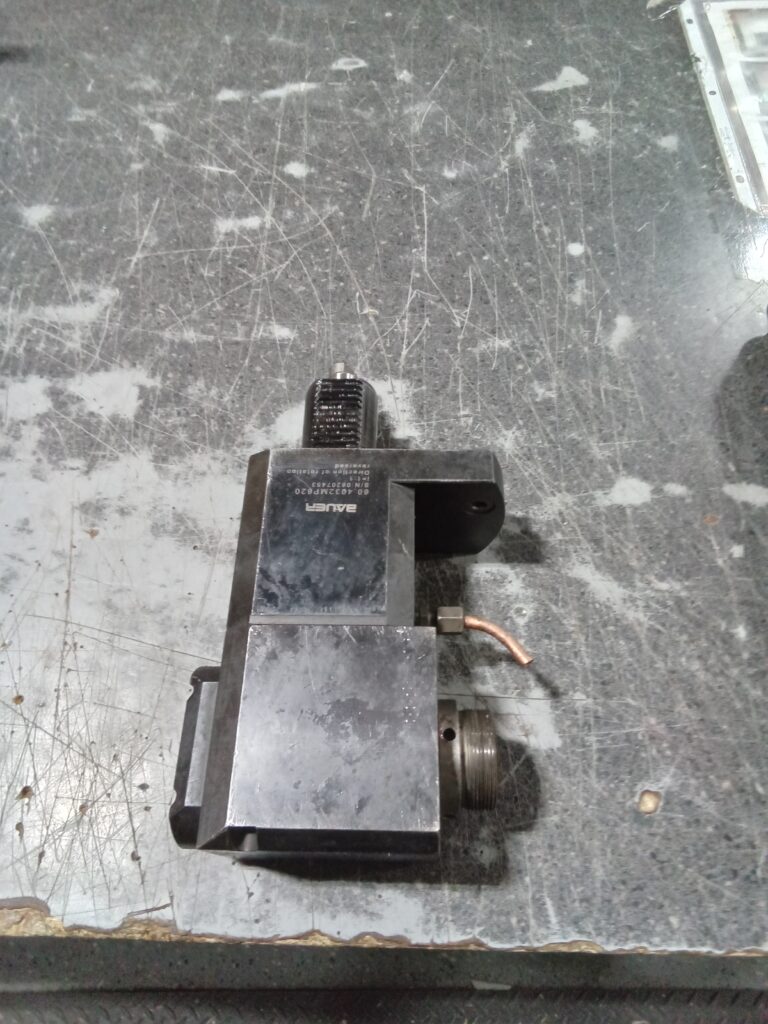

Live Tool Repair • Case Studies

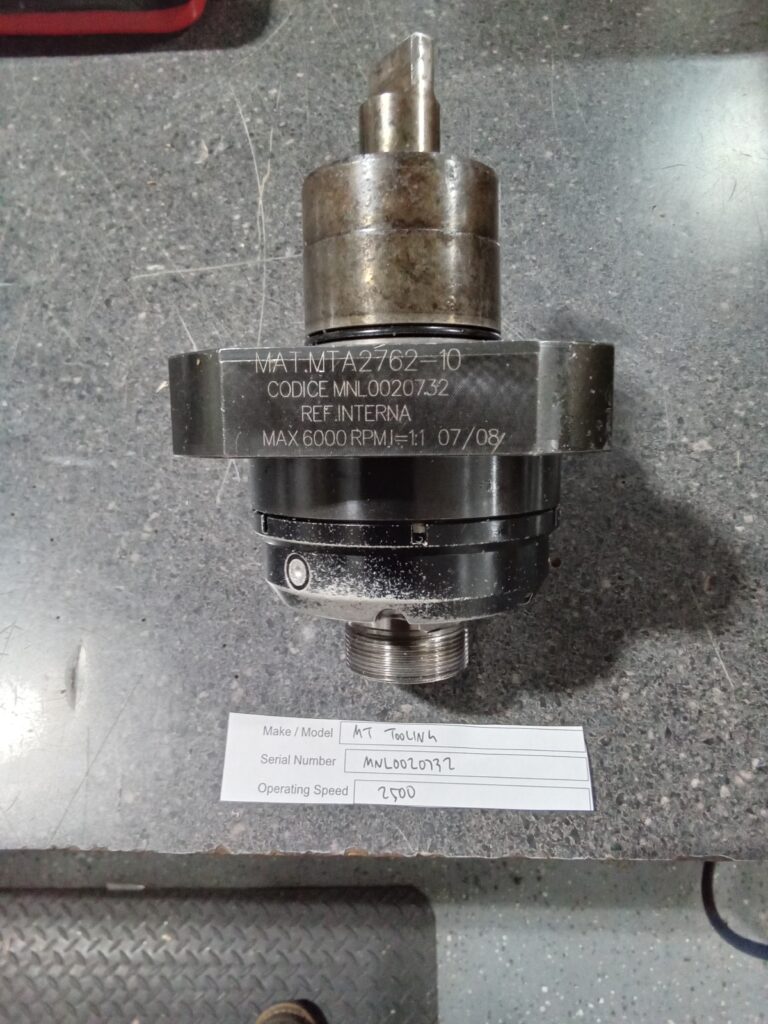

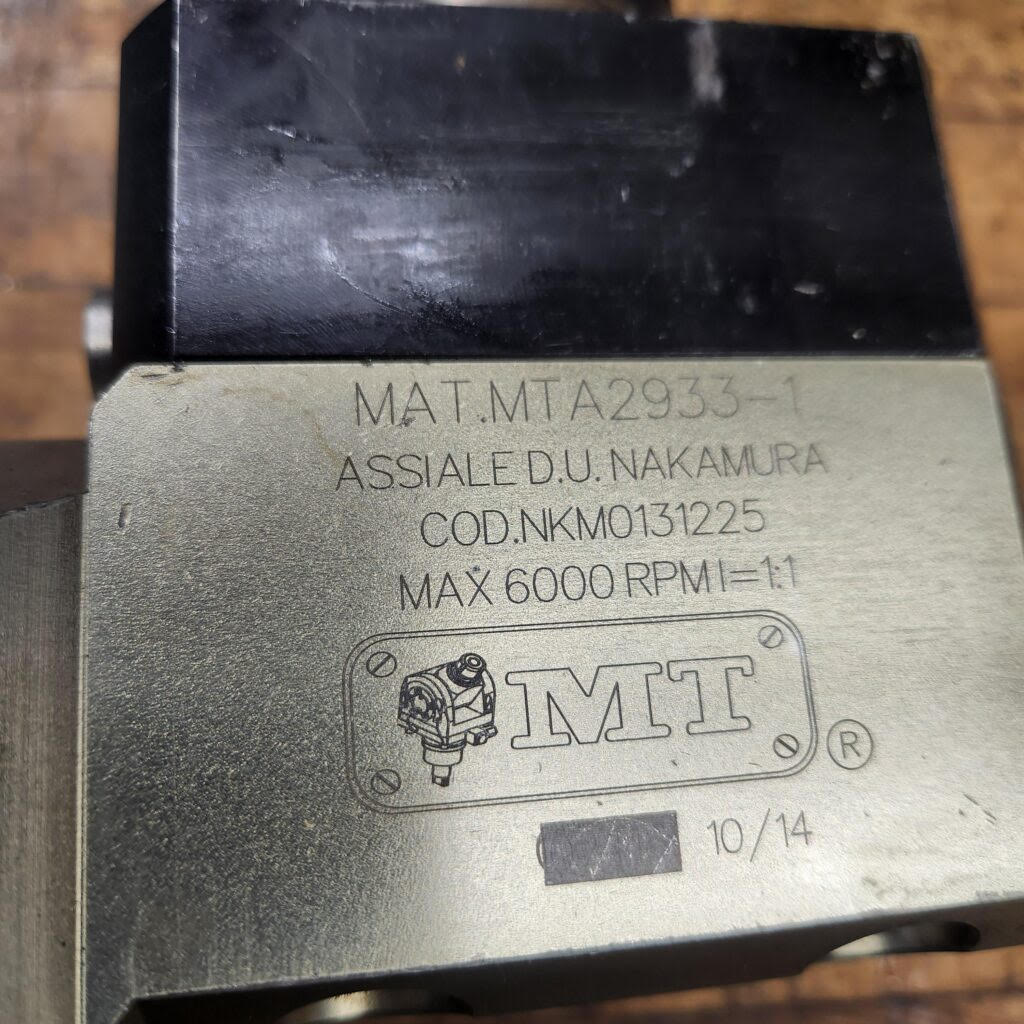

MT live tool, MTA9692-4.2, DWD0240132, 6000rpm

MT live tool, MTA9692-4.2, DWD0240132, 6000rpm DR7001399 Angular contact bearing DR7001400 Angular contact bearing DR7001086 Deep groove bearing DR7001199 Needle roller bearing DR7001854M Plate & Grind Journal - Manual spindle motor or live tool DR7000039 Bearing Cartridge Repair DR7000024 New cover DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The drive spindle journal ... Read More

MT live tool, MTB3051-4.1, 0272232, 6000rpm

MT live tool, MTB3051-4.1, 0272232, 6000rpm DR7001640 Deep groove bearing DR7001206 Tapered Roller Bearing DR7000570 Deep groove bearing DR7001109 Deep groove bearing DR7000009M Dust Grind Taper - Manual spindle motor or live tool DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper ... Read More

WTO, 410504041-40, K07-000772.1, 4500rpm

WTO, 410504041-40, K07-000772.1, 4500rpm DR7002047 Angular contact bearing DR7001818 Angular contact bearing DR7000841 Angular contact bearing DR7001087 Angular contact bearing DR7001262 Angular contact bearing DR7000447 Deep groove bearing DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy 5 Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper bearing fits. The bearing ... Read More

WTO, 410104041-40, K07-00077-1.3, 4500rpm

WTO, 410104041-40, K07-00077-1.3, 4500rpm DR7001554 Angular contact bearing DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper bearing fits. The bearing housing inner diameter meets design specifications and shows no appreciable wear. No modification is required. The taper runout is acceptable. Our proposal ... Read More

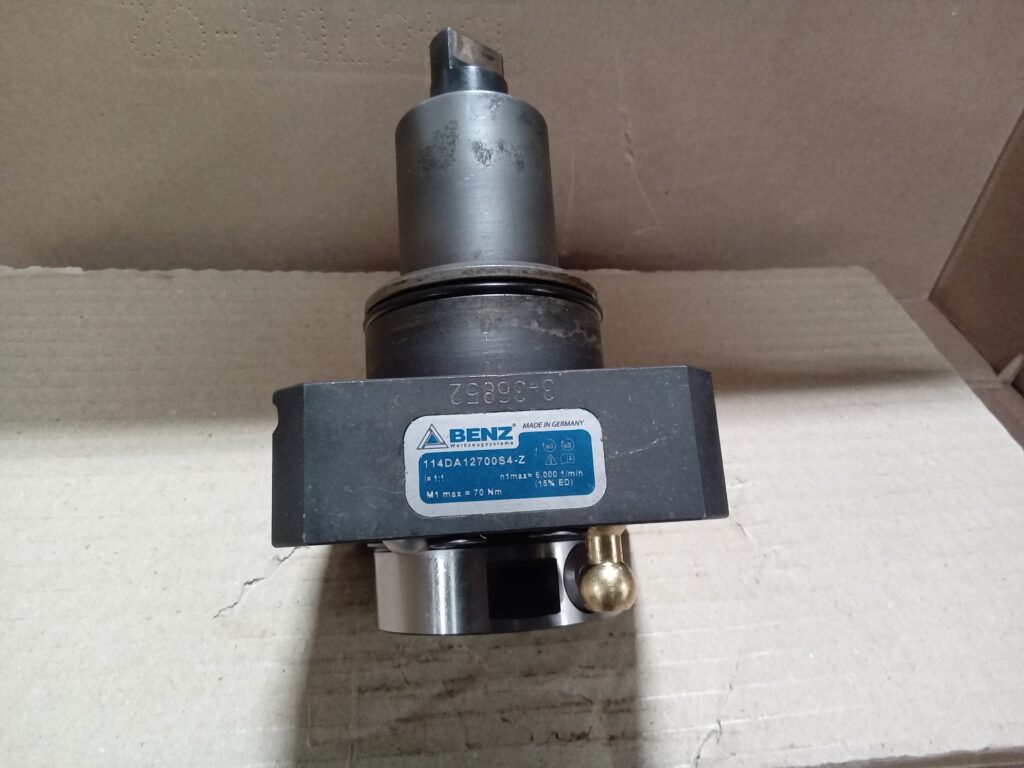

Benz, 114FAX12749E6AD-72-Z, BMT65-90 Degree, 6000rpm

Benz, 114FAX12749E6AD-72-Z, BMT65-90 Degree, 6000rpm DR7001980 Angular contact bearing DR7002068 Double row bearing DR7002586 Needle roller bearing DR7002181 Dust grind seal area DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper bearing fits. Both seal areas on the journals show some wear. ... Read More

Miyano, BND 4252, BD3111SB2, 5000rpm

Miyano, BND 4252, BD3111SB2, 5000rpm DR7002584 Lower bearing DR7000489 Upper Bearing DR7000024 Bearing Cap DR7000024 Stepped Sleeve DR7000024 Misc. Seals / Grease / orings, etc... DR7000087 Dynamic Balance Rotating Part DR7000041 Spindle Repair Labor And Assy Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper bearing fits. The upper bearing housing inner diameter meets design ... Read More

Fadal spindle, 03200203+100, 25713A

Fadal spindle, 03200203+100, 25713A DR9003492 Lower bearing DR7000426 Upper bearing DR7000087 Dynamic Balance Rotating Part DR7000041 Spindle Repair Labor And Assy Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper bearing fits. The upper bearing housing inner diameter meets design specifications and shows no appreciable wear. No modification is required. The lower bearing housing inner diameter ... Read More

Brother Spedio cartridge spindle, S700X1, 111819, 16000rpm

Brother Spedio cartridge spindle, S700X1, 111819, 16000rpm DR7002581 Lower bearing R188213 Upper bearing DR7000009ATC Dust Grind Taper - ATC spindle DR7000087 Dynamic Balance Rotating Part DR7000041 Spindle Repair Labor And Assy Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper bearing fits. The taper runout is larger than design specifications. We recommend dust grinding the taper. ... Read More

Cycatec, 13098

Cycatec, 13098 DR7000569 Deep groove bearing DR7002583 Deep groove bearing DR7000041 Spindle Repair Labor And Assy Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper bearing fits. The upper bearing housing inner diameter meets design specifications and shows no appreciable wear. No modification is required. The lower bearing housing inner diameter meets design specifications and shows no ... Read More

MT, MTB3189-2.1, 092425, 12000rpm

MT, MTB3189-2.1, 092425, 12000rpm DR7001399 Angular contact bearing DR7001400 Angular contact bearing DR7001086 Deep groove bearing DR7001199 Needle roller bearing DR7000024 Misc. Seals / Grease / seals, etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper bearing fits. The bearing housing inner diameter meets design specifications and shows ... Read More
