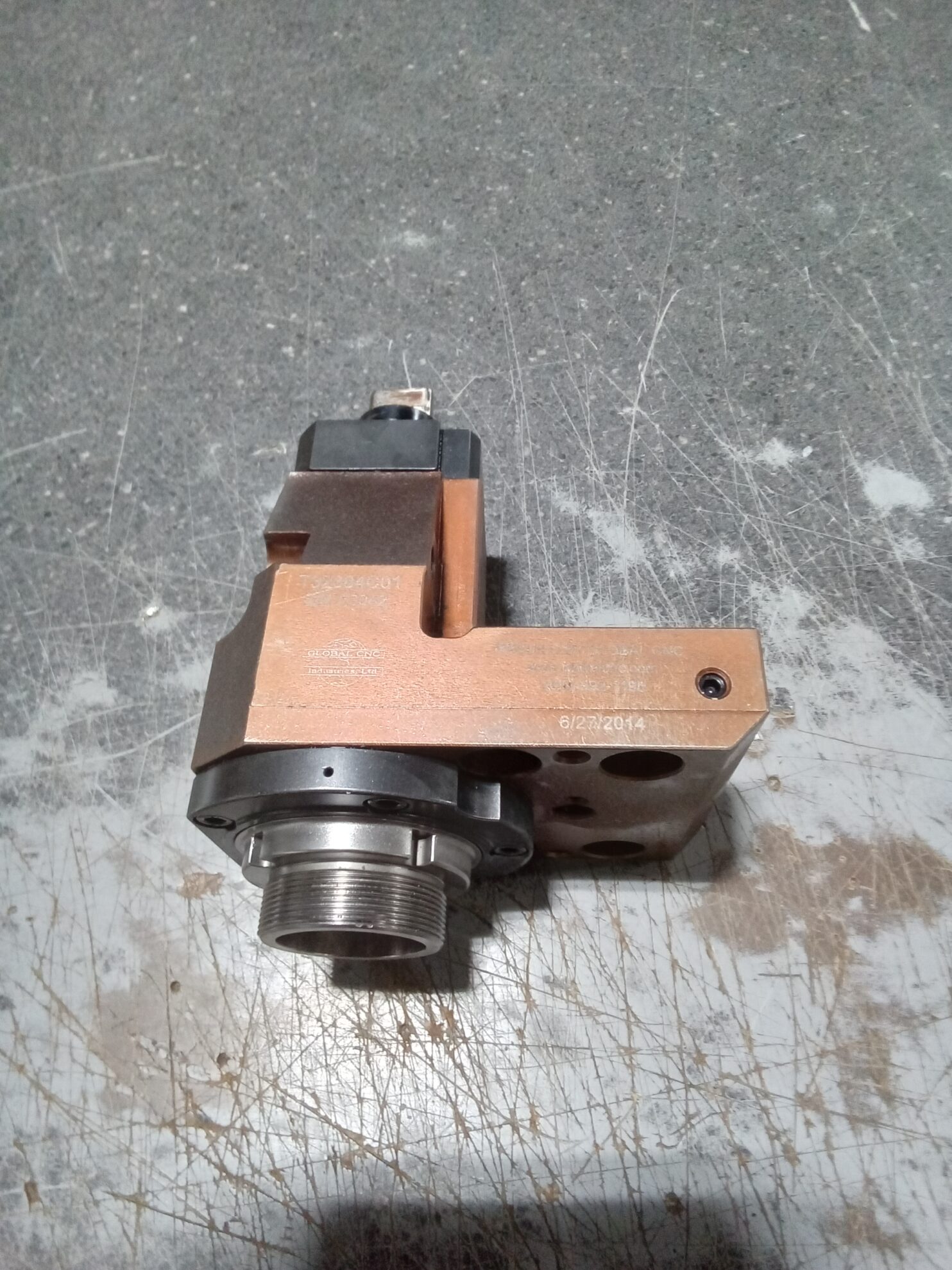

This image shows a Global CNC right-angle live tooling head. It is stamped with the date 6/27/2014. The threaded nose and mounting ports are clearly visible.
**Visual overview**
The main component is a compact rectangular housing in a copper/bronze finish. A threaded stainless nose protrudes from the front. The nose has a retention ring and appears ready to accept tooling or an adapter. Multiple round ports line the side for coolant or fasteners.
**Key visible features**
The housing bears a faint “GLOBAL CNC” logo on the side. There is a small black connector or clamp on the top rear edge. Several mounting holes are drilled into the block. Surface wear and light scratches indicate regular use in a machining environment.
**Condition notes**
No obvious cracks or breaks are visible in the photo. The threaded nose looks intact. The body shows normal shop wear and mild surface oxidation. Any internal issues like bearings or seals cannot be judged from this photo alone.
**What Ekstrom Carlson will do**
Ekstrom Carlson inspects and repairs live tools and spindles like this one. We only repair the item; we are not the original manufacturer. Our technicians will perform a full disassembly, bearing check, and seal replacement as needed. We also test run repaired units before return shipping.
**Why this matters**
Right-angle live tooling heads are critical for turning centers and mills that need driven tooling. Proper repair restores runout, balance, and coolant sealing. Ekstrom Carlson also builds motors, custom tools, and carbide router bits if you need replacements or upgrades.
**Contact and next steps**
If you want this Global CNC live tool inspected or repaired, contact Ekstrom Carlson. Send photos and any part numbers you have. We will give a repair estimate and turnaround time.
