Focused on high quality products & repair services that meet all of your cutting tool, spindle, live tool, arbor motor, and coolant mist needs.

Offering stock & custom cutting tools, repair services on every brand, saw motors and custom spindles, and more…

Cutting tools manufacturing and sharpening, spindle and live tool repair, coolant spray system, router and saw motors

EkstroMill Variable Helix Endmill

State of the art, 4 flute, variable helix endmill with a premium grade solid carbide, and versitle C7 coating. Custom made here in the USA by Ekstrom, this is the perfect tool for your high-performance needs.  Square edge, corner radius and available in coolant through.

Plastic Routerbits

Premium O flute router bits utilizing state of the art 5 axis CNC grinders and inspection equipment to offer better quality cutting tools at better prices.  Stocking to requirements.  Blanket orders available.  These tools are perfect for use on pretty much any plastic.

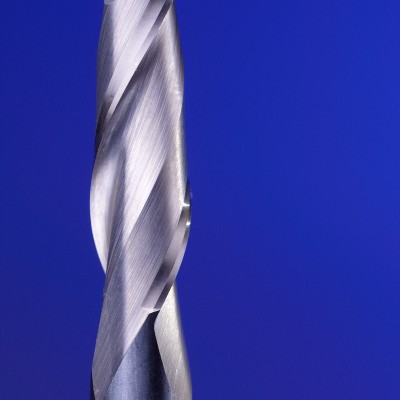

Woodworking Cutting Tools

Ekstrom manufactured 2 flute upcut and downcut router bits, compression router bits, straight flute router bits, custom step drills, and other 1 flute, 3 flute, and 4 flute tools for wood. These tools are perfect for your woodworking needs.

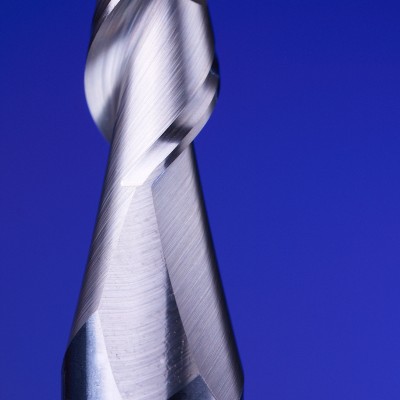

Aluminum Cutting Tools

Ekstrom manufactured 1 flute O flute tools, 2 flute and 3 flute cutting tools specifically made for manufacturing aluminum.  Standard and high performance designs by Ekstrom. These tools are perfect for use on aluminum or other similar metals.

Mistic Mist

Compressed air coolant mist spray systems.  Made 100% in Rockford, IL, USA by Ekstrom Carlson using ISO 9001 quality standards and procedures – Mistic Mist cutting fluid misting systems are considered the most efficient mist systems for cooling spray used in machine coolant operations.

Products & Services

Ekstrom Carlson | Custom Cutting Tools

Solid carbide endmills, step drills, carbide drills, custom special cutting tools, and router bits

Ekstrom Carlson manufactures carbide endmills, drills, custom carbide tools, and solid carbide router bits utilizing state of the art 8 axis CNC grinders and inspection equipment to offer better quality cutting tools at better prices.   We stock standard tools to our catalog and we can make custom tools to meet customer needs.  Carbide router bits and high speed steel router bits for use as cnc router bits and woodworking router bits are kept in stock.

Mistic mist cooling spray system

Mistic Mist Systems are considered the most efficient mist systems for a cooling spray.

The compressed air passing through the valve body and to the nozzle tip creates a vacuum in the liquid line which draws coolant from the tank.  The coolant is instantly vaporized and forms a conical mist pattern. At the same time, the compressed air expands absorbing heat surrounding the tool and work piece. The result is a cooling effect as well as lubrication.

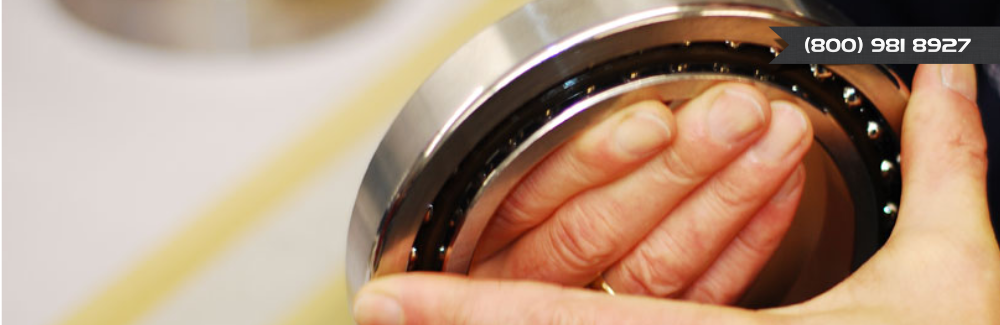

Spindle Repair Services

Utilizing our past experience as an original equipment spindle and spindle motor manufacturer, we provide spindle repair and upgrade services that are competitive and timely.  We repair all makes and model spindles from all industries including woodworking, metalworking, plastics, and stone cutting.   Repairing over 600 spindles each year keeps our technicians trained to best spindle repair practices.  All spindles are re-assembled in our clean room facility.   We offer the highest value, most competitive, spindle repair in the industry.

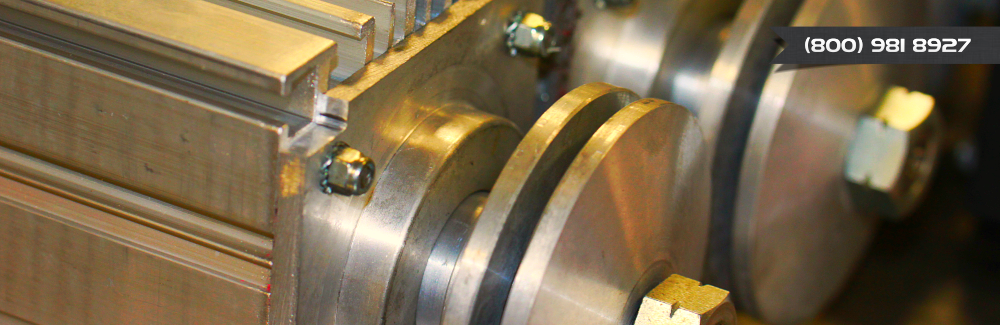

Ekstrom Carlson | Motors

Spindle motors, saw motors & router motors

Ekstrom Carlson offers high quality motors that function in special applications as spindle motors, saw motors, saw arbor motors, arbor motors, tenoner motors, shaper motors, special shaft motors, compact motors, blower motors, wood router motors, cnc router motors, quick tool change motors, high speed spindle motors, high speed router motors, automatic tool change motors, cnc spindle motors, electro spindles, custom motors, and extended shaft motors.   We can take a standard motor and make it a modified or custom motor with a special or extended motor  shaft.

Live tool, right angle aggregate head, and multi-spindle head repairs

Live tooling repairs, multispindle drill head repairs, right angle milling head repairs, and aggregate head repairs represent our core repair service capability. New American manufactured live tools soon to be added to our offerings and website.  Inspections are free – Ask us for a quotation.

Is your multi-spindle boring head or aggregate head under-performing?  We can repair it for you in a timely and low cost fashion to get you back up and running.  We will save you money on point to point and CNC router station repairs.

Recent News & Updates

MT live tool

T134-00059, 07/03, 4000rpm DR7000235 Angular contact bearing DR7001186 Angular contact bearing DR7001086 Deep groove bearing DR7001199 Needle roller bearing DR7001854M Plate & Grind Journal - Manual spindle motor or live tool DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The upper journal is worn and pitted. We recommend [...]

Heimatec linear live tool

 801044061, s/n 4008/14.03, 6000rpm DR7001209 Angular contact bearing DR7001206 Tapered Roller Bearing DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper bearing fits. The bearing housing inner diameter meets design specifications and shows no appreciable wear. No modification [...]

HSD ag head

H6314H0196, 2018024174 DR7001070 Angular contact bearing DR7000517 Angular contact bearing DR7000891 Angular contact bearing DR7000407 Needle roller bearing DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper bearing fits. The bearing housing inner diameter meets design specifications [...]

Hitachi Seiki live tool

V40M-Z/012 W8, 1745-00803-02 DR7001082 Angular contact bearing DR7001421 Deep groove bearing DR7001375 Needle roller bearing DR7000024 New shaft DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The taper in the spindle shaft has a crack. We recommend making a new shaft. The bearing housing inner diameter meets design specifications [...]

Omlat

46180006, 9.2kW, 18000rpm, 380v, 600 Hz, s/n 993454 DR7000761 Gripper, Omlat ISO 30 Gripper, Female Thds DR7000024 Weld & re-machine pusher DR7000041 Spindle Repair Labor And Assy Inspection Results: The gripper is broke and will be replaced. The drawbar and pusher rod from the cylinder have a friction weld. We recommend welding and re-machining the [...]

Custom Tool for Worldwide Auto Manufacturer

We are honored to have manufactured a custom carbide parabolic spline form tool for a worldwide luxury car manufacturer to precise tolerances. This is just another example of how we can meet all of your custom tooling needs at a great price without sacrificing quality.

Fast Turn Around on Custom Step Drills

We made these step drill tools in 3 working days, solid carbide coolant through 2 flute high performance drill for AISI 4140 28-36HRC, double margin, honed and edge prepped on point and chamfer. 6 shipped overnight to customer, 6 being rushed through coating.

Fischer Spindle

MFWS-2105/24/2 VCU, 24000rpm DR7002150 Lower bearing DR7002151 Upper bearing DR7002152 HSK A63 gripper DR7000087 Dynamic Balance Rotating Part DR7000041 Spindle Repair Labor And Assy Inspection Results: •The spindle journal diameters show no appreciable wear and are acceptable for proper bearing fits. •The upper bearing housing inner diameter meets design specifications and shows no appreciable wear. [...]

Saccardo

XSA24B6EP9, s/n 144987, 21.5kW, 1160/8000rpm, 400v, 60/400 Hz, 8P DR7000263 Lower bearing DR7001365 Upper bearing DR7000745 Deep groove bearing DR7000009M Plate & Grind Taper - Manual spindle motor or live tool DR7001854M Plate & Grind Journal - Manual spindle motor or live tool DR7000024 Bearing nut DR7000087 Dynamic Balance Rotating Part DR7000041 Spindle Repair Labor [...]

KOMET MicroKom BluFlex® 2 Precision boring system

NEW AND IMPROVED – THE SECOND GENERATION Besides its peerlessly innovative qualities and unparalleled precision, the second, completely redesigned version of our KOMET MicroKom BluFlex® system boasts a sophisticated, extremely high-contrast OLED display and is exceptionally easy to use. BENEFITS TO YOU Display resolution precise to the nearest micrometere: 0.001 mm in diameter The precision […]
