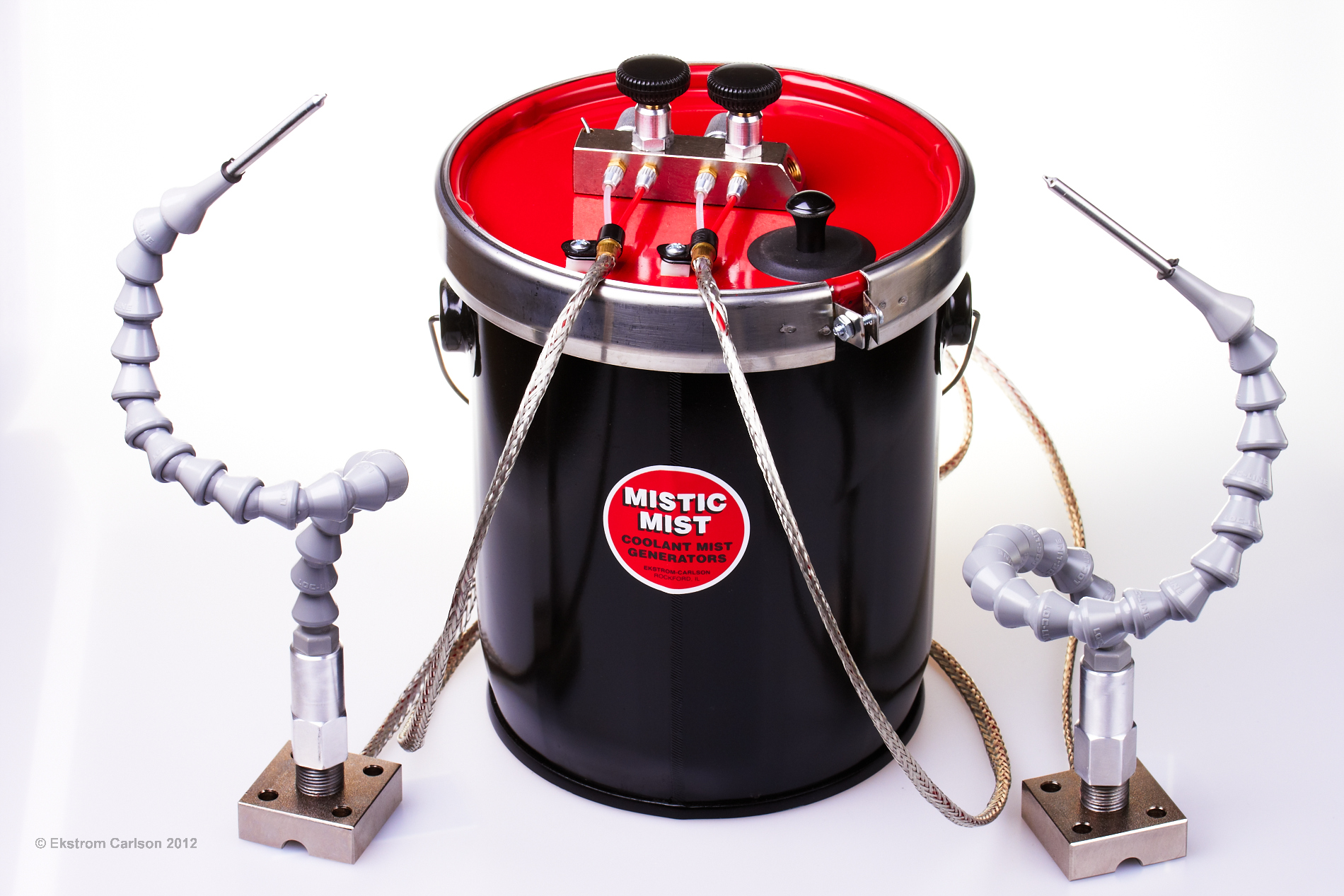

Mistic Mist Cooling System
Cutting fluid misting systems
Mistic Mist is considered the most efficient cooling mist system for cooling spray used in machine coolant operations.
Mistic Mist Spray System – Precision Cooling & Dust Control
CNC • Milling • Router • Grinding • Lathe • Machining Centers • Molding
Boost Tool Life and Machining Performance
The Mistic Mist Spray System is a precision mist coolant system engineered for CNC machining, milling, grinding, and turning applications. By delivering an ultra-fine, controlled mist directly to the cutting zone, it minimizes heat, reduces friction, and keeps tools cooler—resulting in longer tool life, improved accuracy, and smoother finishes.
Industrial Dust Suppression and Cleaner Workspaces
Beyond cooling, this system provides effective dust suppression for shops working with metals, plastics, and composites. The fine spray reduces airborne particles at the source, improving air quality, protecting operator health, and maintaining a cleaner production environment.
Reliable, Low-Maintenance Design
Built with durable components, the Mistic Mist Spray System is easy to install and requires minimal upkeep. Its compact, efficient design makes it a cost-effective solution for machine shops and industrial facilities looking to cut downtime and keep operations running smoothly.
Applications Across Industries
– CNC Machining & Milling – Precision cooling for high-speed operations
– Grinding & Cutting – Reduced heat and improved surface finishes
– Composite Fabrication – Dust suppression and cleaner cuts
– Metalworking & Industrial Manufacturing – Longer equipment life and safer environments.
Why Choose the Mistic Mist Spray System?
Extends tool life through targeted mist cooling that reduces heat buildup and wear.
Controls heat, friction, and dust directly at the cutting zone for stable machining.
Improves surface quality and consistency across machining applications.
Reduces airborne mist and coolant overspray for a safer shop environment.
Industrial-grade components designed for long-term reliability and low maintenance.
Quick setup with minimal downtime so you can get back to production fast.
Reduces coolant waste and improves machining efficiency over time.
Manufactured and supported in the United States with quality you can trust.
Improves machining consistency and helps maintain higher throughput.
Thumb screws to increase and decrease flow and pressure.
The compressed air passing through the valve body and to the nozzle tip creates a vacuum in the liquid line which draws cutting coolant from the tank. (Our tank is not pressurized.) The cutting fluid is instantly vaporized and forms a conical mist pattern. At the same time, the compressed air expands absorbing heat surrounding the tool and work piece. The result is a cooling effect as well as lubrication.
Application
The Mistic Mist System is used in machining environments where heat, friction, and chip buildup negatively impact tool life and surface quality.
It provides controlled mist lubrication for a wide range of cutting and material removal processes.
Common applications include milling, turning, grinding, tapping, drilling, routing, CNC machining, saw cutting, and other production machining operations where consistent cooling and lubrication are required.
Hi-Flo System Applications
The Hi-Flo configuration is designed for high-demand machining where standard coolant delivery is not sufficient to maintain cutting stability.
It provides increased flow coverage to improve heat control, chip evacuation, and tool performance under heavy load conditions.
Ideal for heavy milling, deep profiling, threading, turning, abrasive cutoff operations, Blanchard grinding, large saw applications, and tool & cutter grinding where consistent performance is critical.
Quality Components
Each Mistic Mist system is built using industrial-grade components designed for consistent atomization, durability, and long-term performance in production environments.
Stainless steel precision nozzles, solid brass valve bodies, flexible coolant lines, corrosion-resistant tanks, and inlet filtration screens ensure reliable operation and reduced maintenance requirements.
Every unit is fully inspected before shipment to ensure proper performance.
Advantages of Mistic Mist
Mistic Mist delivers lubrication directly at the cutting zone, reducing waste while improving machining efficiency compared to traditional flood coolant systems.
Benefits include improved tool life, better surface finishes, reduced coolant consumption, lower maintenance requirements, and cleaner machine operation with less mess and downtime.
The system is designed for simplicity and cost efficiency, requiring only minimal air consumption and offering extremely low operating cost per hour while remaining easy to install and maintain.
Frequently Asked Questions
It’s widely used in machine shops, metalworking, composite fabrication, woodworking, and general manufacturing-anywhere cooling and dust control are needed.
The Mistic Mist Spray System is designed for cooling and dust control in machining, grinding, milling, and cutting applications. It delivers a fine mist directly to the work area, reducing heat and extending tool life.
Yes. It’s an excellent solution for CNC machining, milling, and turning operations, providing consistent mist cooling that improves performance and part finish.
By reducing heat and friction at the cutting surface, the system minimizes tool wear. This means longer-lasting cutting tools, reduced downtime, and improved part accuracy.
Unlike messy flood setups, Mistic Mist uses compressed air to atomize coolant into a precise micro-mist. It stops thermal shock and eliminates deep fluid sumps.
Our units are highly versatile, working efficiently with water-soluble oils, synthetic coolants, and vegetable-based fluids without clogging lines.
Mistic Mist systems operate using standard shop compressed air, running efficiently between 30 to 80 PSI depending on your specific nozzle setup.
Yes. The highly controlled micro-fine spray cools the tooling and traps fine dust particles without warping or saturating porous materials.
Single outlets fit basic drilling or manual lathes. Multi-outlet units are ideal for complex CNC geometry needing multi-angle cooling.
Yes. Ekstrom Carlson builds for long-haul duty. We stock replacement nozzles, lines, and valves directly in Rockford, IL for immediate shipping.
Every system ships complete with flexible, heavy-duty armored lines and brackets designed to mount to standard mill heads or enclosures in minutes.
Unsure what configuration your machine needs? Our Rockford team provides direct engineering support to find the exact setup for your materials.
