Manufacturer: Not identifiable from the photo. Model number: Not readable on the nameplate. If you need exact make and model, please send a close-up of the nameplate.
**What this image shows**

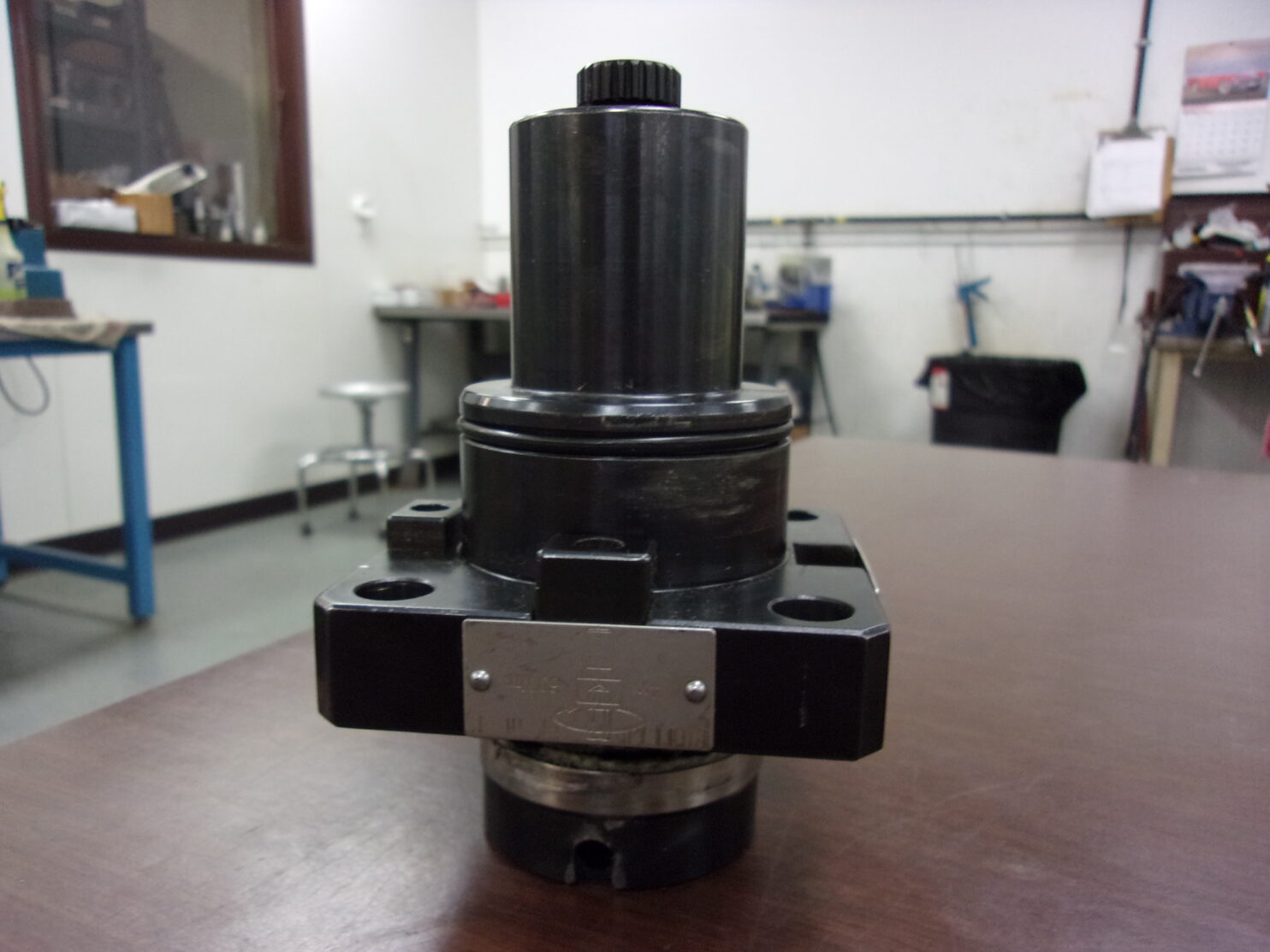

This photo highlights a live tool spindle assembly. The vertical cylindrical shaft and the square flange are the main visual clues. You can also see a small riveted nameplate on the front flange. The nameplate is too small to read in this image. Wear and grease near the lower bearing area suggest it was in active service.
**Key visible features**
The unit has a round upper housing that likely contains bearings. It has a four-hole mounting flange for secure installation. The front lower section appears to be the spindle nose or tool-holder interface. Surface scuffs and residual lubricant show normal operational wear.
**Why this matters for machining operations**
Live tool spindles power off-axis cutting on CNC lathes and mills. A damaged spindle or worn bearings cause vibration and poor finish. Timely repair restores accuracy and extends tool life. Proper repair reduces costly downtime in production.
**How Ekstrom Carlson ties in**
Ekstrom Carlson inspects and repairs live tools and spindles like the one pictured. We only repair the item; we are not the original manufacturer. Our services include bearing replacement, balancing, seal and shaft repair, and reassembly. We also manufacture motors, custom tools, and carbide router bits.
**Condition notes and recommended next steps**
From this photo, bearings and seals deserve a close look. The riveted nameplate should be photographed for factory identification. We recommend a full teardown and inspection. Ekstrom Carlson can perform diagnostics and provide a written repair estimate.
**Call to action**
Need a quote or expert spindle repair? Contact Ekstrom Carlson with your part photos and serial plate. Send a close-up of the nameplate for faster identification. We’ll assess and return a repair plan and timeline.
