We offer MT live tool repair services for all MT precision tools. Our repairs will typically cost 1/2, or less than 1/2 the price of a new live tool. Plus, we can upgrade the original non-sealed bearing design, to a sealed / shielded bearing design at all bearing locations. We keep bearings in stock for these live tools to allow us to keep pace with our repair volume. Lead-time can be as short as 2-3 days.
- Most live tools exceeding 0.001″ runout are due, or almost due, for a repair. 0.0008″ or less is the target runout for a live tool.
- Live tools like to rest as long as they cycle at full speed or maximum load. 5 minutes is a typical maximum run time followed by a 5 minute rest.
- 150 to 160F temperatures are common when running at full load.
- Disassembled and cleaned.
- Inspected dimensionally and visually.
- Quoted for repair.
- The spindles are assembled with new precision grade sealed / shielded bearings.
- If necessary, the spindle is ground to true the taper, and / or the bearing journals are plated and re-ground to proper bearing tolerance and total indicated runout.
- As required, the lower, middle and upper bearing housings may be bored, bushed, and reground to proper concentricity and dimensional tolerance.
- The spindles are re-assembled.
- The spindles are installed in the housing.
- The unit is run tested for 5-10 hours with testing of vibration, temperature, and noise levels
Why should you have your multi-spindle boring head, high speed right angle head, or other aggregate head, repaired by Ekstrom-Carlson?
- Lead-time: 1-2 Week average for multi-spindle heads, including tear down, inspection, quotation, and repair. 3-5 days for right angle heads and live tooling repairs.
- Price: Much lower price than the OEM, or the OEM distributor.
- USA repair: We repair the unit in Rockford, Illinois. It is not shipped overseas, as is often the case for various machines.
- Parts repair: Where possible, we will save money by repairing motor spindles and gear spindle shafts. Some manufacturer’s representatives will always quote a brand new unit if the unit drive shaft is damaged, or if the bearings require replacement. 75% of the time, we can save the original unit at less than 50% the cost of new.
- Sealed bearings when available and possible conversion to ceramic bearings.
- Free inspections.
- The condition of the machine before the rebuild along with accurately diagnosing any and all problems.
- Installing proper replacement parts including spindle grade bearings and parts with OEM tolerances that are known only to OEM’s such as Ekstrom-Carlson.
- Precision tolerance machinery and tooling including grinding, plating and balancing equipment.
- Experience and quality workmanship of the repair technician.
Live Tool Repair • Case Studies
MT live tool, MTA9692-4.2, DWD0240132, 6000rpm
MT live tool, MTA9692-4.2, DWD0240132, 6000rpm DR7001399 Angular contact bearing DR7001400 Angular contact bearing DR7001086 Deep groove bearing DR7001199 Needle roller bearing DR7001854M Plate & Grind Journal - Manual spindle motor or live tool DR7000039 Bearing Cartridge Repair DR7000024 New cover DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The drive spindle journal ... Read More
MT live tool, MTB3051-4.1, 0272232, 6000rpm
MT live tool, MTB3051-4.1, 0272232, 6000rpm DR7001640 Deep groove bearing DR7001206 Tapered Roller Bearing DR7000570 Deep groove bearing DR7001109 Deep groove bearing DR7000009M Dust Grind Taper - Manual spindle motor or live tool DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper ... Read More
MT, MTB3189-2.1, 092425, 12000rpm
MT, MTB3189-2.1, 092425, 12000rpm DR7001399 Angular contact bearing DR7001400 Angular contact bearing DR7001086 Deep groove bearing DR7001199 Needle roller bearing DR7000024 Misc. Seals / Grease / seals, etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper bearing fits. The bearing housing inner diameter meets design specifications and shows ... Read More
MT live tool, MTA 1302-2, MNL0350532, 12000rpm
MT live tool, MTA 1302-2, MNL0350532, 12000rpm DR7001239 Angular contact bearing DR7001304 Angular contact bearing DR7000925 Deep groove bearing DR7001088 Deep groove bearing DR7000039 Bearing Cartridge Repair DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper bearing fits. One of the ... Read More
MT, dual quad output, MNL0234425, MTB7507-6.2, ER25, 6000rpm
MT, dual quad output, MNL0234425, MTB7507-6.2, ER25, 6000rpm DR7001544 Angular contact bearing DR7001304 Angular contact bearing DR7001400 Angular contact bearing DR7001470 Deep groove bearing DR7000925 Deep groove bearing DR7000024 Dust grind housing shoulder DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The spindle journal diameters show no appreciable wear and are acceptable for proper ... Read More
MT live tool

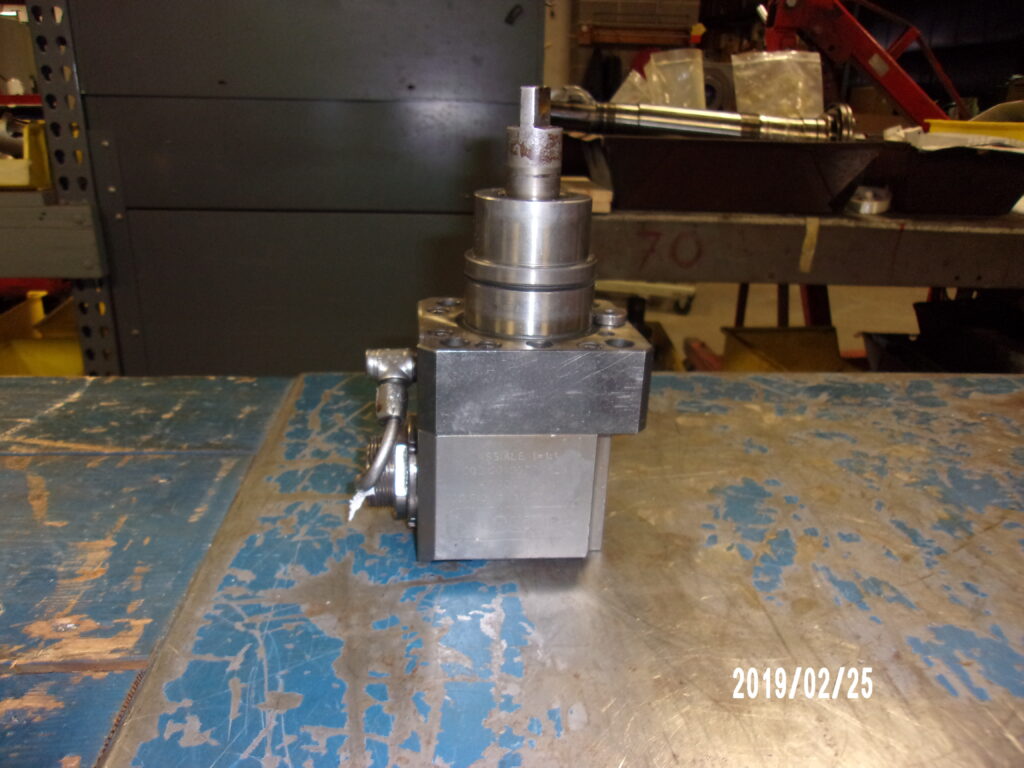

MTA 0047-10, 8000rpm DR7000235 Angular contact bearing DR7001186 Angular contact bearing DR7001086 Deep groove bearing DR7001199 Needle roller bearing DR7000024 New Shaft DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The drive shaft is bent. We recommend making a new shaft. The bearing housing inner diameter meets design specifications and shows no appreciable wear. ... Read More
MT live tool
T13-00026, MT2005 xx, 6000rpm DR7001304 Angular contact bearing DR7001990 Deep groove bearing DR7001463 Deep groove bearing DR7001127 Needle roller bearing DR7000009M Dust Grind Taper - Manual spindle motor or live tool DR7001854M Plate & Grind Journal - Manual spindle motor or live tool DR7000039 Bearing Cartridge Repair DR7002181 Dust grind seal area DR7000024 Misc. Seals / Grease / etc... DR7000041 ... Read More
MT live tool
T134-00059, 07/03, 4000rpm DR7000235 Angular contact bearing DR7001186 Angular contact bearing DR7001086 Deep groove bearing DR7001199 Needle roller bearing DR7001854M Plate & Grind Journal - Manual spindle motor or live tool DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The upper journal is worn and pitted. We recommend plating and grinding this area. The ... Read More
MT live tool
MTA5167-4.1, s/n 0272232, ER32 BMT55, 6000rpm DR7001640 Deep groove bearing DR7001206 Tapered Roller Bearing DR7000570 Deep groove bearing DR7001109 Deep groove bearing DR7001854M Plate & Grind Journal - Manual spindle motor or live tool DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The upper spindle journal diameter is worn and undersized for proper ... Read More
MT live tool
MTB2642-4.2, 0272232 DR7001640 Deep groove bearing DR7001206 Tapered Roller Bearing DR7000570 Deep groove bearing DR7001109 Deep groove bearing DR7001854M Plate & Grind Journal - Manual spindle motor or live tool DR7000024 Misc. Seals / Grease / etc... DR7000041 Spindle Repair Labor And Assy Inspection Results: The upper spindle journal diameter is worn and undersized for proper bearing fits. We recommend plating ... Read More
